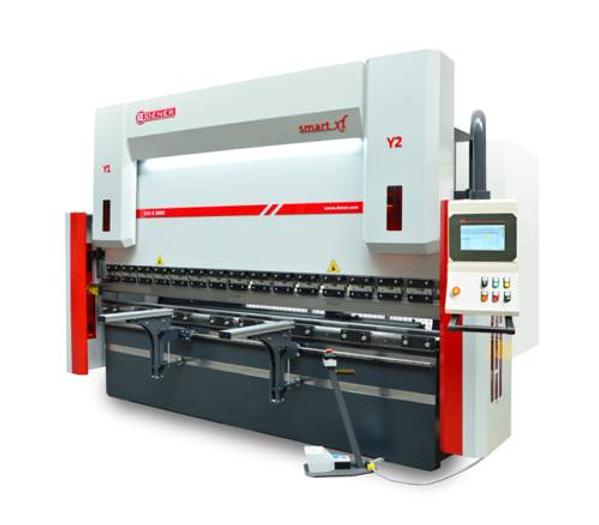

DENER Smart XL 400-40 Hydraulic Press Brake

Standard Equipment • Y1, Y2, X, R Axis • Europen type punch holder • Europen type die holder • 15″ Esa S 640 touch screen 2D control unit • Deeper Throat Depths (650 mm) • Higher Stroke and Longer Daylight (600 mm) • Hoerbiger or Rexroth hydraulic system • Foot pedal with emergency stop button • Linear Guided Front Support Arms • Side and back safety gates Optional Equipment • Delem Da 52 Control unit • Cybelec Cybtouch 10 Control unit • X and R Backgauge • Quick tool change system • Manual crowning • CNC crowning • Light curtain with CE norm • Multi V Die • Hydraulic Oil Cooling System • Electrical Cabinet Cooling System • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System Capacity 440 US Tons 400 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 3.1 IPS 80 mm/s Bend Speed Max. .4 IPS 10 mm/s Return Speed Max. 3.1 IPS 80 mm/s Punch holder Height 2.4 Inch 600 mm Back Gauge Speed 295 IPM 125m/s Back Gauge Repeat 0.002" 0.05 mm Back Gauge X Travel 29.6 Inch 750 mm Back Gauge max gauge 40 Inch 1015mm R Axis Travel 9.8 Inch 250 mm Bending Length 159 inch 4050 mm Distance Between Frames 139.7 Inch 3550 mm Ram Stroke 15.75 400 Daylight w/o punch hlds 25.6 Inch 650 mm Throat Depth 23.6 Inch 600 Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 52,250 lbs 23,750 kg
