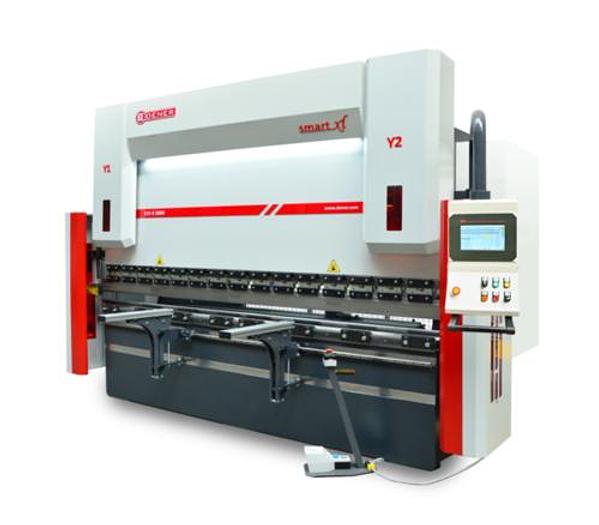

DENER Puma XL 60-20 Hydraulic Press Brake

Standard Equipment • Y1, Y2, X, R Axis • Europen type punch holder • Europen type die holder • 21″ Esa S 675 touch screen 3D control unit • Deeper Throat Depths (400 mm) • Higher Stroke and Longer Daylight (220 mm) • Hoerbiger or Rexroth hydraulic system • Foot pedal with emergency stop button • Linear Guided Front Support Arms • Side and back safety gates Optional Equipment • Delem Da 52 Control unit • Cybelec Cybtouch 10 Control unit • X and R Backgauge • Quick tool change system • Manual crowning • CNC crowning • Light curtain with CE norm • Multi V Die • Hydraulic Oil Cooling System • Electrical Cabinet Cooling System • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System Capacity 66 US Tons 60 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 7.1 IPS 180 mm/s Bend Speed Max. 0.4 IPS 10 mm/s Return Speed Max. 603 IPS 160 mm/s Punch holder Height 2.4 Inch 600 mm Back Gauge Speed 295 IPM 125m/s Back Gauge Repeat 0.002" 0.05 mm Back Gauge X Travel 29.6 Inch 750 mm Back Gauge max gauge 40 Inch 1015mm R Axis Travel 9.8 Inch 250 mm Bending Length 80 inch 2050 mm Distance Between Frames 65.9 Inch 1650 mm Ram Stroke 8.7 Inch 220 mm Daylight w/o punch hlds 16.1 Inch 410 mm Throat Depth 15.7 Inch 400 mm Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 10,560 lbs 4800 kg Oil Capacity 25 100 Liter
