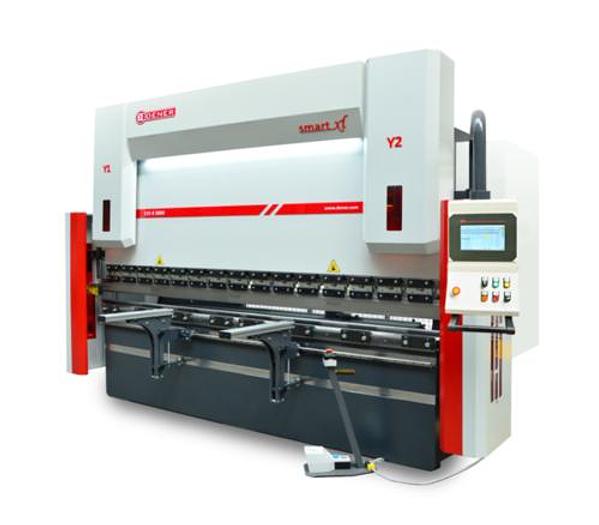

DENER Puma XL 400-40 Hydraulic Press Brake

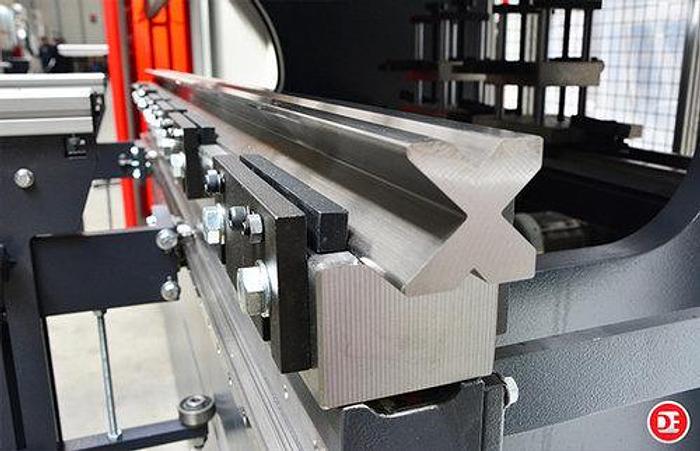

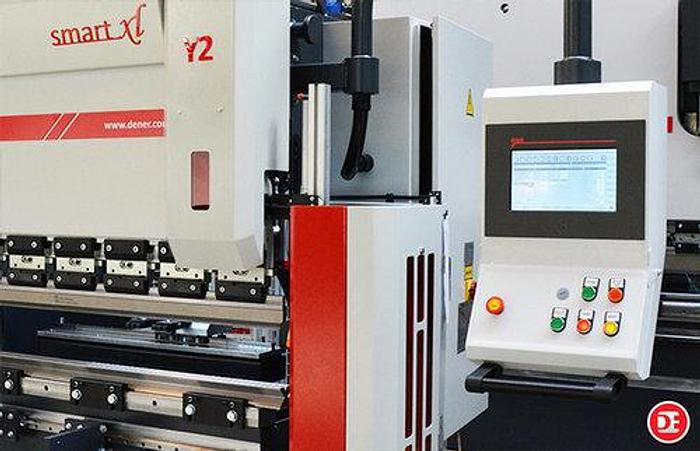

Bending length: 4050 Capacity: 440 t Standard Equipment • Y1, Y2, X, R Axis • Europen type punch holder • Europen type die holder • 21″ Esa S 675 touch screen 3D control unit • Deeper Throat Depths (450 mm) • Higher Stroke and Longer Daylight (350 mm) • Hoerbiger or Rexroth hydraulic system • Foot pedal with emergency stop button • Linear Guided Front Support Arms • Side and back safety gates Optional Equipment • Delem Da 52 Control unit • Cybelec Cybtouch 10 Control unit • X, R, Z1, Z2 Backgauge • Quick tool change system • Manual crowning • CNC crowning • Light curtain with CE norm • Multi V Die • Hydraulic Oil Cooling System • Electrical Cabinet Cooling System • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System Capacity 440 US Tons 400 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 2.4 IPS 60 mm/s Bend Speed Max. 0.33 IPS 8 mm/s Return Speed Max. 5.1 IPS 130 mm/s Punch holder Height 2.4 Inch 600 mm Back Gauge Speed 295 IPM 125m/s Back Gauge Repeat 0.002" 0.05 mm Back Gauge X Travel 29.6 Inch 750 mm Back Gauge max gauge 40 Inch 1015mm R Axis Travel 9.8 Inch 250 mm Bending Length 159 inch 4050 mm Distance Between Frames 139 Inch 3550 mm Ram Stroke 15.75 Inch 400 mm Daylight w/o punch hlds 25.6 Inch 650 mm Throat Depth 23.6 Inch 600 mm Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 52,250 lbs 23,750 kg Oil Capacity 100 400 Liter
