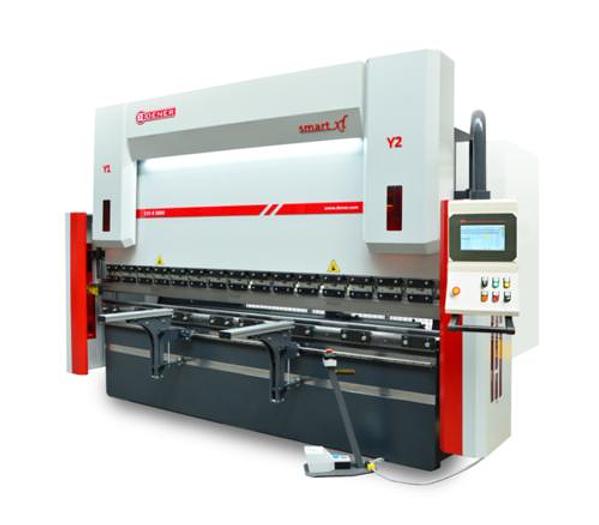

DENER Puma XL 320-36 Hydraulic Press Brake

Standard Equipment • Y1, Y2, X, R Axis • Europen type punch holder • Europen type die holder • 21″ Esa S 675 touch screen 3D control unit • Deeper Throat Depths (450 mm) • Higher Stroke and Longer Daylight (650 mm) • Hoerbiger or Rexroth hydraulic system • Foot pedal with emergency stop button • Linear Guided Front Support Arms • Side and back safety gates Optional Equipment • Delem Da 52 Control unit • Cybelec Cybtouch 10 Control unit • X and R Backgauge • Quick tool change system • Manual crowning • CNC crowning • Light curtain with CE norm • Multi V Die • Hydraulic Oil Cooling System • Electrical Cabinet Cooling System • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System Capacity 352 US Tons 320 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 5.5 IPS 140 mm/s Bend Speed Max. .4 IPS 10 mm/s Return Speed Max. 4.7 IPS 120 mm/s Punch holder Height 2.4 Inch 600 mm Back Gauge Speed 295 IPM 125m/s Back Gauge Repeat 0.002" 0.05 mm Back Gauge X Travel 29.6 Inch 750 mm Back Gauge max gauge 40 Inch 1015mm R Axis Travel 9.8 Inch 250 mm Bending Length 143 inch 3650 mm Distance Between Frames 122 Inch 3100 mm Ram Stroke 15.75 400 Daylight w/o punch hlds 23.6 Inch 600 mm Throat Depth 17.7 Inch 450 Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 34,430 lbs 15,650 kg
