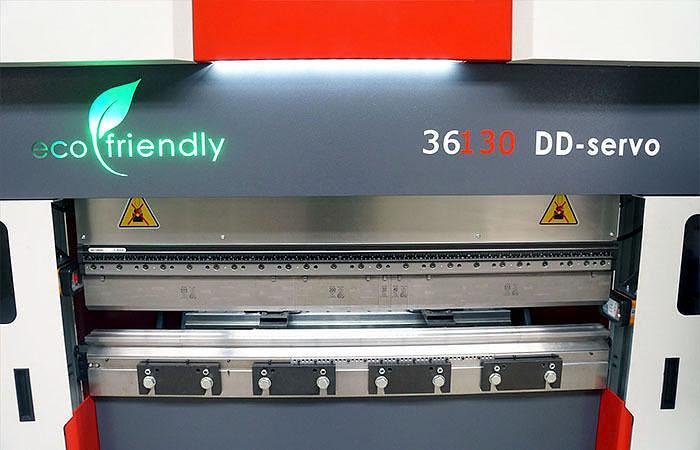

DENER DDS 40-13 BALL SCREW PRESS BRAKE

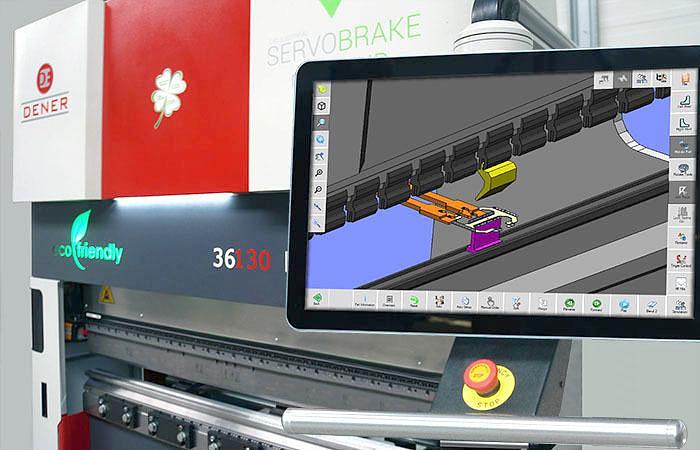

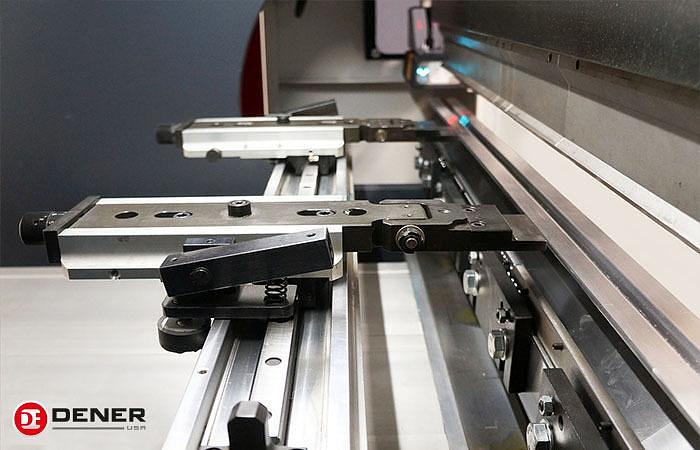

Dener Ball Screw Press Brakes are no-hydraulic, flexible, reliable and advance bending machines. Next generation machine idea combines green-eco friendly machines productivity, accuracy, flexibility and reliability. The new concept offers low power consumption, less maintenance, no hydraulic oil for operation. Ball Screw Press Brake comes with advance CNC controller, fast and accurate punch and die clamping multi axis back gauge system. Operators simply make perfect sheet metal parts with very low cost BALL SCREW DDS-40-13 Bending Length 1300 mm Bending Capacity 40 ton Maximum Stroke 150 mm Daylight Opening 350 mm Approaching Speed 150 mm/s Bending Speed 20 mm/s Return Speed 150 mm/s Main Motor 3,8 x 2 kW Weight 3500 kg Overall Length 1700 mm Width 2200 mm Height 2300 mm Standard Equipment • Europen type sectioned punch holder • Europen type sectioned die holder • Esa S 675 3D control unit • 4 Axis – Y1, Y2, X, R • Side and back safety gates • DSP Laser front protection system with CE norm • Foot pedal with emergency stop button • 380 V, 50-60 HZ, 3Ph Electrical system • Electrical Cabinet Cooling System Optional Equipment • Delem DA 66T Control unit • Delem DA 69T 3D Control unit • Fiessler Akas 2 M(P) protection system • Light curtain with CE norm • Pneumatic tool holding system • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System
