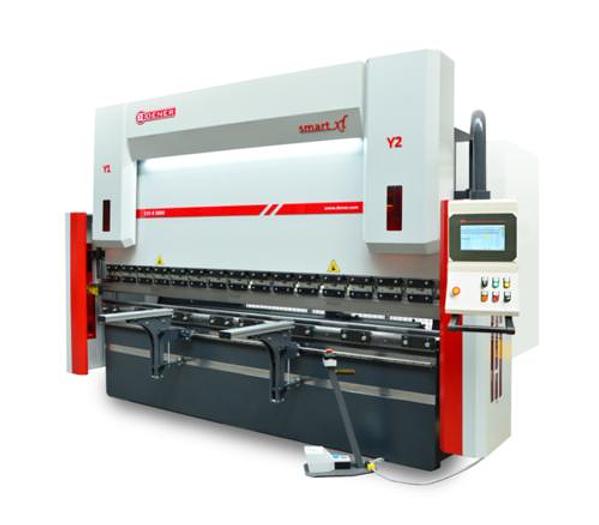

DENER Puma XL 100-26 Hydraulic Press Brake

Standard Equipment • Y1, Y2, X, R Axis • Europen type punch holder • Europen type die holder • 21″ Esa S 675 touch screen 3D control unit • Deeper Throat Depths (450 mm) • Higher Stroke and Longer Daylight (300 mm) • Hoerbiger or Rexroth hydraulic system • Foot pedal with emergency stop button • Linear Guided Front Support Arms • Side and back safety gates Optional Equipment • Delem Da 52 Control unit • Cybelec Cybtouch 10 Control unit • X and R Backgauge • Quick tool change system • Manual crowning • CNC crowning • Light curtain with CE norm • Multi V Die • Hydraulic Oil Cooling System • Electrical Cabinet Cooling System • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System Capacity 110 US Tons 100 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 6.3 IPS 160 mm/s Bend Speed Max. 0.4 IPS 10 mm/s Return Speed Max. 5.9 IPS 150 mm/s Punch holder Height 2.4 Inch 600 mm Back Gauge Speed 295 IPM 125m/s Back Gauge Repeat 0.002" 0.05 mm Back Gauge X Travel 29.6 Inch 750 mm Back Gauge max gauge 40 Inch 1015mm R Axis Travel 9.8 Inch 250 mm Bending Length 102 inch 2600 mm Distance Between Frames 85.6 Inch 2150 mm Ram Stroke 11.8 Inch 300 mm Daylight w/o punch hlds 20.8 Inch 530 mm Throat Depth 17.7 Inch 450 mm Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 17,380 lbs 7,900kg Oil Capacity 48 190 Liter
