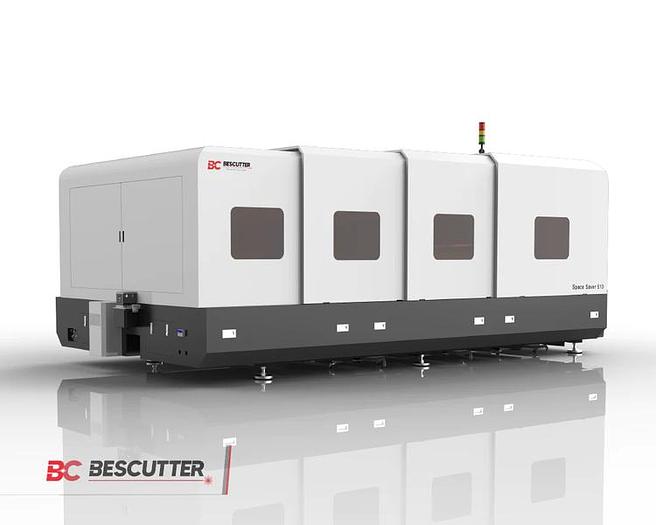

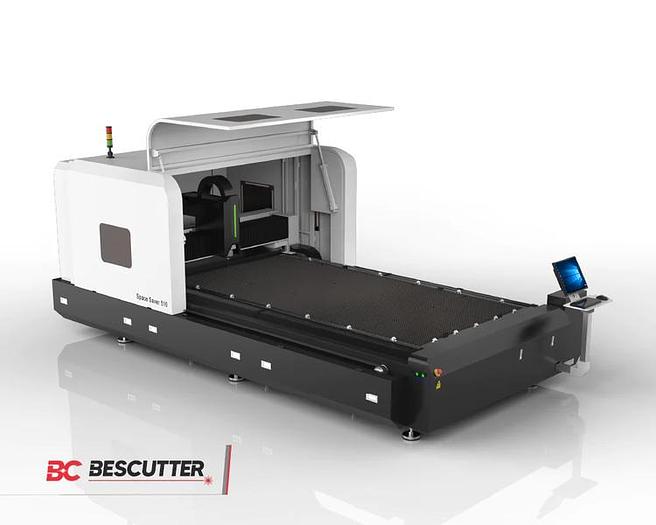

SPACE SAVER 5'x10' | 6KW | Fiber Laser for Metal Sheet Cutting
SPACE SAVER 5'x10' | 6KW | Fiber Laser for Metal Sheet Cutting
orCall +1 972-241-0790
Description
Working Area:
60" x 120 " (3000mm X 1500mm)
Working Environment: Temp: 5-40℃, Humidity:5-85%
Specifications
| Manufacturer | BESCUTTER |
| Model | Spacesaver 510 6kW Fiber Laser |
| Condition | New |
| Stock Number | 57 |
| Status | For Sale |
| Laser Power | 6,000 W |
| Overall Dimension | 213" X 86" X 79"(5400mm X 2200mm X 2000mm) |
| Weight | 9900 lb |
| Positioning Accuracy | ±0.11/1000 in (±0.03/1000 mm) |
| Repeated Positioning Accuracy | ±0.07/1000 in (±0.02/1000 mm) |
| Maximum Speed | 52 in/s |
| Maximum Accelerated Speed | 0.52 in/s |
| Supply Voltage | Three Phase 380V/50Hz/60Hz |
| Controlling System | FsCut 2000 |
| X Axis Stroke | 60" (1525 mm) |
| Y Axis Stroke | 120" (3050 mm) |
| Z Axis Stroke | 4.7" (120 mm) |
| Laser Head | Raytools |
| Lubrication System | Optimized autolubrication system |
