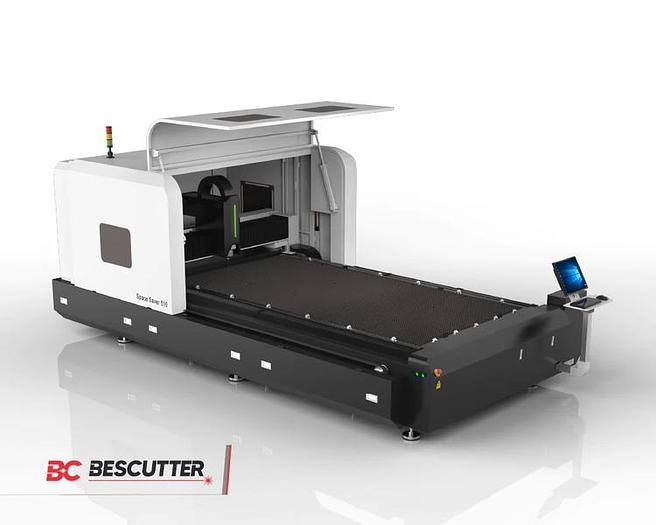

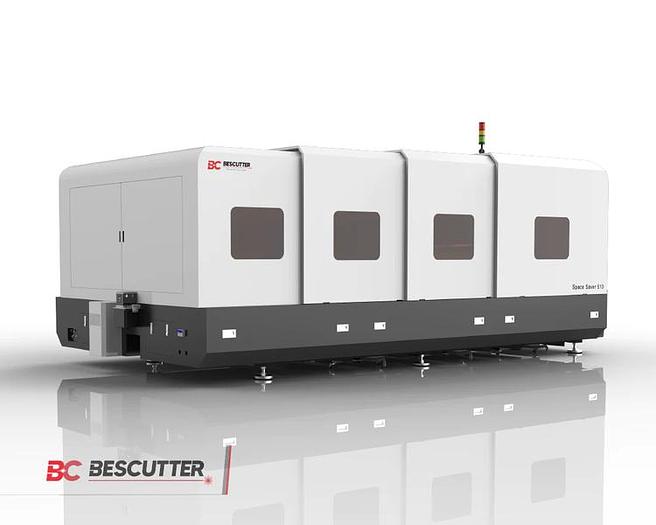

SPACE SAVER 5'x10' | 2KW | Fiber Laser for Metal Sheet Cutting

SPACE SAVER 5'x10' | 2KW | Fiber Laser for Metal Sheet Cutting

orCall +1 972-241-0790

Description

Working Area: 60" x 120 " (3000mm X 1500mm) Working Environment: Temp: 5-40℃, Humidity:5-85%
Show All

Specifications

ManufacturerBESCUTTER
ModelSPACESAVER 510 2000W
ConditionNew
Stock Number36
StatusFor Sale
Laser Power2,000 W
Overall Dimension213" X 86" X 79"(5400mm X 2200mm X 2000mm)
Weight9900 lb
Positioning Accuracy±0.11/1000 in (±0.03/1000 mm)
Repeated Positioning Accuracy±0.07/1000 in (±0.02/1000 mm)
Maximum Speed52 in/s
Maximum Accelerated Speed0.52 in/s
Supply VoltageThree Phase 380V/50Hz/60Hz
Controlling SystemFsCut 2000
X Axis Stroke60" (1525 mm)
Y Axis Stroke120" (3050 mm)
Z Axis Stroke4.7" (120 mm)
Laser HeadRaytools
Lubrication SystemOptimized autolubrication system
