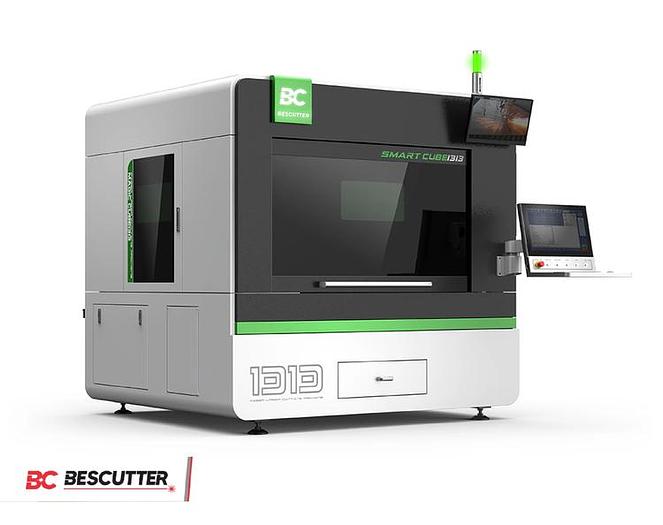

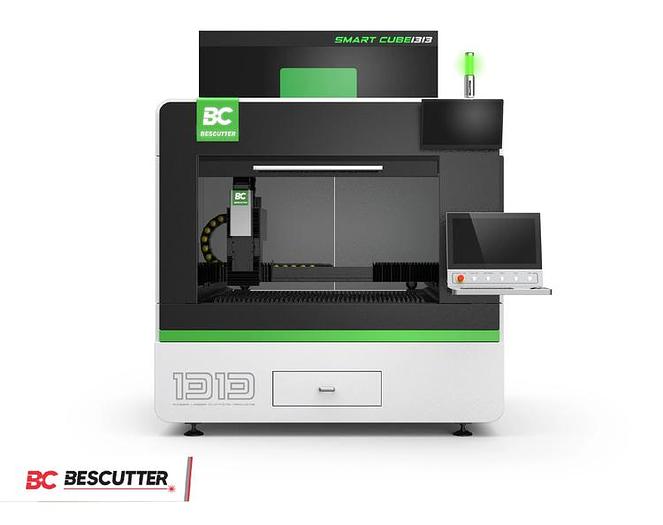

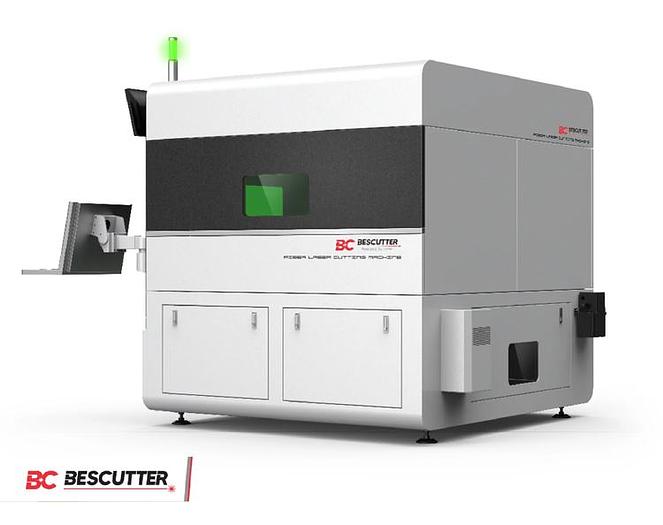

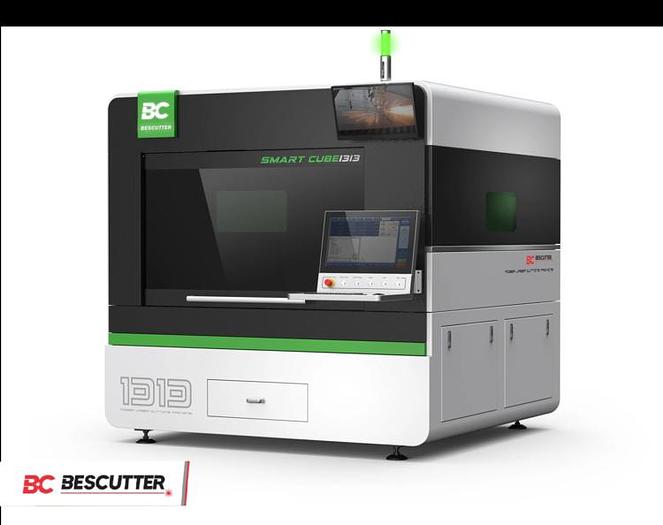

SMART CUBE 51"x 51" | 2000W | Fiber Laser Sheet Metal Cutting Machine
SMART CUBE 51"x 51" | 2000W | Fiber Laser Sheet Metal Cutting Machine
orCall +1 972-241-0790
Description
(Lubrication reminder available)
Laser Head RayTools
Controlling System CYPCUT BCS 100
Electromechanical SCHNEIDER, SMC and etc
X-Y-Z Servo Motors Y 2 x 1,500W - X 1 x 1,000W - Z 1 x 400W
Specifications
| Manufacturer | BESCUTTER |
| Model | SMART CUBE 2000W |
| Condition | New |
| Status | For Sale |
| Sheet-W | 51" |
| Sheet-L | 51" |
| Wattage | 2000 w |
| IPM | 3300 ipm |
| Working Size | 51” W x 51” L (1,300 mm x 1,300 mm) |
| X - Axis Travel | 51” (1,300 mm) |
| Y - Axis Travel | 51” (1,300 mm) |
| Z - Axis Travel | 4” (100 mm) |
| Laser Power | 2000W |
| X/Y Axis Positioning Accuracy | ±0.05 mm/m |
| X/Y Axis Repeated Positioning Accuracy | ±0.02 mm |
| Lubrication System | Automatic Lubrication |
| Max Speed | 55”/s (84m/min) |
| Machine Weight | 5,500 lbs (2,500 kg) |
| Dimensions | 85” L x 91” W x 83”H (2150x2300x2120 mm) |
| Laser Resonator | IPG |
