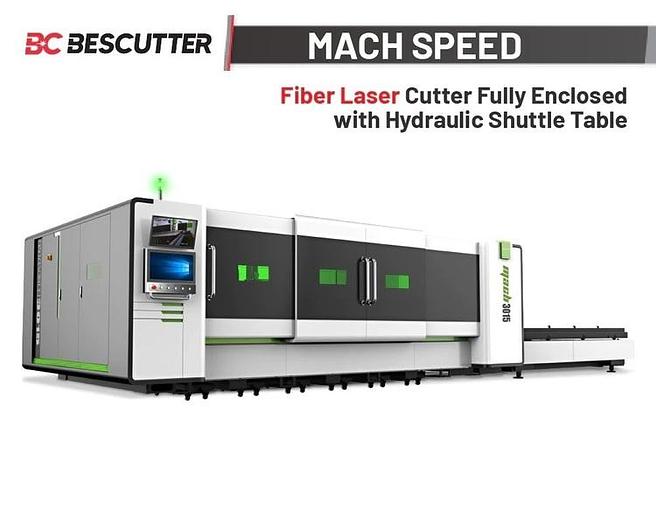

Mach 3015 15kW Heavy Duty Fiber Laser Metal Sheet Cutter Full Enclosure with Parallel Shuttle Table
Mach 3015 15kW Heavy Duty Fiber Laser Metal Sheet Cutter Full Enclosure with Parallel Shuttle Table
orCall +1 972-241-0790
Description
Working Area: 61" x 120" (3050 x 1550 mm) Optional 157" x 78.7"/ 236" x 98.4"/ 315" x 98.4"
X, Y Two-axis positioning speed 2.4 G
Positioning acceleration <0.373 mrad
Specifications
| Manufacturer | BESCUTTER |
| Model | Mach 3015 15kW Heavy Duty Fiber Laser |
| Condition | New |
| Stock Number | 74 |
| Status | For Sale |
| Sheet-W | 5' |
| Sheet-L | 10' |
| Wattage | 0 w |
| X,Y,Z-axis Travel | 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm) |
| Output laser power | 15kW |
| Optional output | 6-20kW |
| Output stability | ±2% |
| Positioning accuracy | ±0.05 mm/m |
| Re-positioning accuracy | ±0.02 mm |
| Maximum load weight | 1962 lb (890 kg) |
| Laser resonator | Hans |
| Laser head | PRECITEC (Germany Brand) |
| Controlling System | Beckhoff (Germany Brand) |
| X-Y-Z Servo Motors | X-2x9700W; Y- 1x6880W ; Z-1x940W |
| Machine Weight | 28200 lbs (12800 kg) |
| Dimensions | 350"x 118" x 87" (8900 x 3000 x 2200 mm) |
