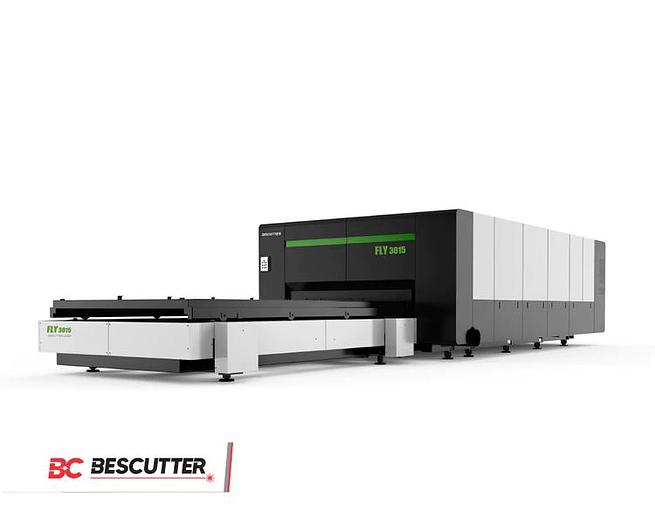

FLY SPEED 5'X10' | 2.0KW | Fiber Laser Metal Sheet Cutter Full Enclosure with Parallel Shuttle Table

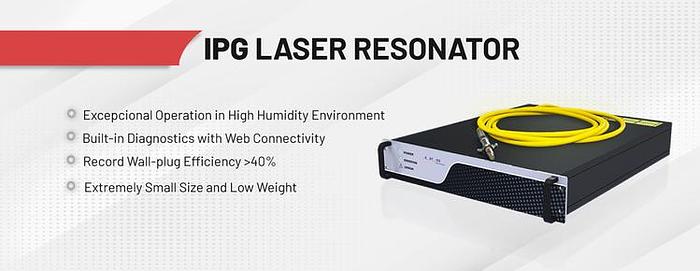

Standard working area 61" x 120" (3050 x 1550 mm) Optional working area 157" x 78.7"/ 236" x 98.4" Optional Laser Wattage 1.5-12KW X, Y, Z axis distance 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm) X, Y Two-axis coordinated positioning speed (MAX) 140 m/min Positioning acceleration (MAX) 1.4 G Positioning accuracy ±0.05 mm/m Re-positioning accuracy ±0.02 mm Maximum load weight 1543 lbs Laser resonator IPG Laser head Raytools (Precitec optional) Controlling System CypCut (Beckhoff optional) X-Y-Z Servo Motors X-2x2900W; Y- 1x850W ; Z-1x750W Machine Weight 20945 lbs (9500 kg) Dimensions 350"x 118" x 83" (8900 x 3000 x 2100 mm)
