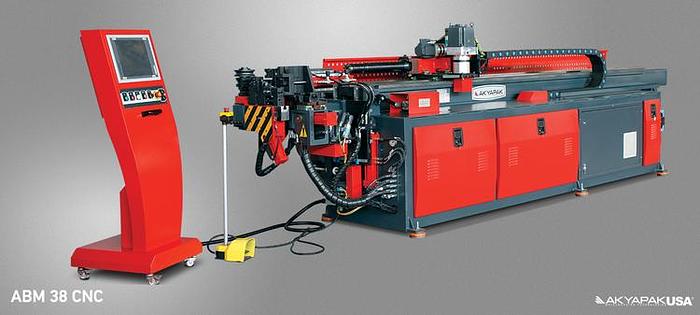

Akyapak ABM38 CNC3 1.5"Tube Bender

ABM 38 CNC-3 Tube Bending Machine bends tubes up to 38 mm | 1.5” diameter with high quality and accuracy as servo motor controlled. This machine, that enable to work with 3 dies, provides convenience, prevents waste of time and increases efficiency, carrying out bending process consecutively and automatically with its advanced NC feature. Max Tube Dia 1.5" Max Wall Thickness .120" Max Bend Degree .083 Max Bend Radius 6" Feed Length (single feed) 39" Rotation (deg/sec) 100 Bend Rotation (deg/sec) 30 Bend Accuracy .004 deg HP 7.5 Servo controlled bending, feeding, shifting and turning axes Servo axises speed control Hydraulic assistant axes Foot pedal control Capability to work with 3 dies Dies can be supplied for any required size Operational ability with/without mandrel Capability of bending steel, stainless steel, aluminum and similar tubes in simple or complex shapes Possibility of bending longer tubes than the machine length (for certain diameters) Unlimited angle obtaining possibility with rolling system Spiral bending (only on certain diameters) Hydraulic oil cooler Automatic mandrel lubrication Easy to operate control system engineered in Akyapak Programming in YBC mode Automatic tube length calculation Motion controller system 3D preview of entered bending program Motors in variable voltage and frequency 15” color touchscreen PC Starting up serial production after short training Certified CE, ISO9001-2008, TSEK and TURQUMk\
