APLG 3060-Gantry Drilling Oxy-Fuel/Plasma Cutting Machines

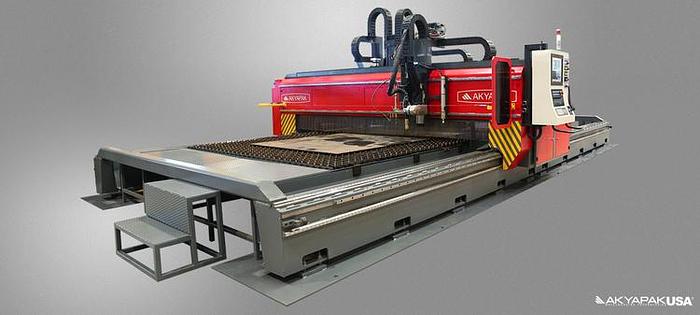

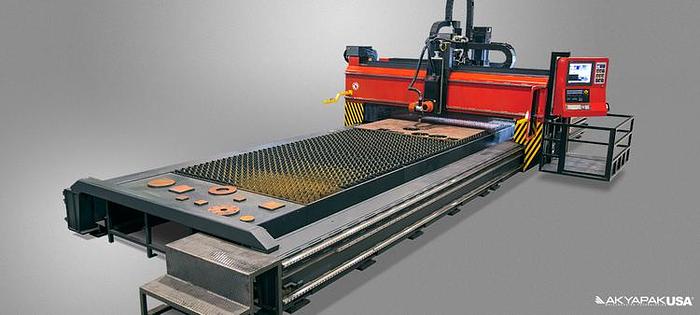

Akyapak's APLG GANTRY Hole Drilling and Oxygen/Plasma Cutting Machine. CNC hole drilling, marking, milling, cutting - oxy or plasma. Akyapak raises the bar in terms of productivity in steel construction manufacturing industry with its GANTRY model. The model is able to perform cutting and light milling on plate by moving the bridge in a minimum field when the material is fixed. The bridge moves on GANTRY while the machine table is fixed, and the model has a hole drilling center with 30 HP power, and plasma and oxygen cutting unit. The smallest version has a 6,5 feet width and its length starts from 20 feet, while the largest version has a 13 feet width and its length ranges up to 118 feet. With this model, Akyapak is environment-friendly, as well. Gases exhausted as a result of plasma and oxygen cutting are collected from the fixed table and filtered, and emitted into the environment as clean gases. Plate size (max. mm): 3000x6000 | (max. feet): 10x20 Plate thicknes with plasma (max. mm): 50 | (max. inch): 2 Plate thicknes with Oxy (max. mm): 100 | (max. inch): 4 Spindle power (kW): 22 | (HP): 30 Machine weight (Kg): 22730 | (Ibs): 50.000 Plate size (max. mm): 3000x6000|(max. feet): 10x20 Plate thickness with plasma (max. mm): 50 | (max. inch): 2 Plate thickness with Oxy (max. mm): 100 | (max. inch): 4 Spindle power (kW): 22 | (HP): 30 Machine weight (Kg): 22730 | (lbs): 50.000
